Setting up a LAN network can be a daunting task, especially when it comes to creating a diagram to visualize the network. Luckily, there are plenty of templates available to make this process easier and more efficient.
A LAN network diagram template is a pre-designed layout that allows you to easily map out your network infrastructure, including devices, connections, and IP addresses. It provides a visual representation of how all the components of your network are interconnected.
Lan Network Diagram Template
Creating Your LAN Network Diagram Template
When creating your LAN network diagram template, it’s important to consider the layout and design that will best suit your needs. You can choose from various templates that offer different styles and formats, depending on the complexity of your network.
Start by identifying all the devices on your network, such as computers, printers, servers, and switches. Then, map out the connections between these devices, including Ethernet cables, wireless connections, and any other networking equipment.
Once you have all the components mapped out, you can use the LAN network diagram template to organize and label each device and connection. This will help you troubleshoot issues, plan for future expansion, and communicate effectively with your team or clients.
In conclusion, using a LAN network diagram template can simplify the process of visualizing and managing your network infrastructure. By following a pre-designed layout, you can save time and effort while ensuring that your network is well-organized and easy to understand.
Office Lan Diagram Stock Illustrations 35 Office Lan Diagram

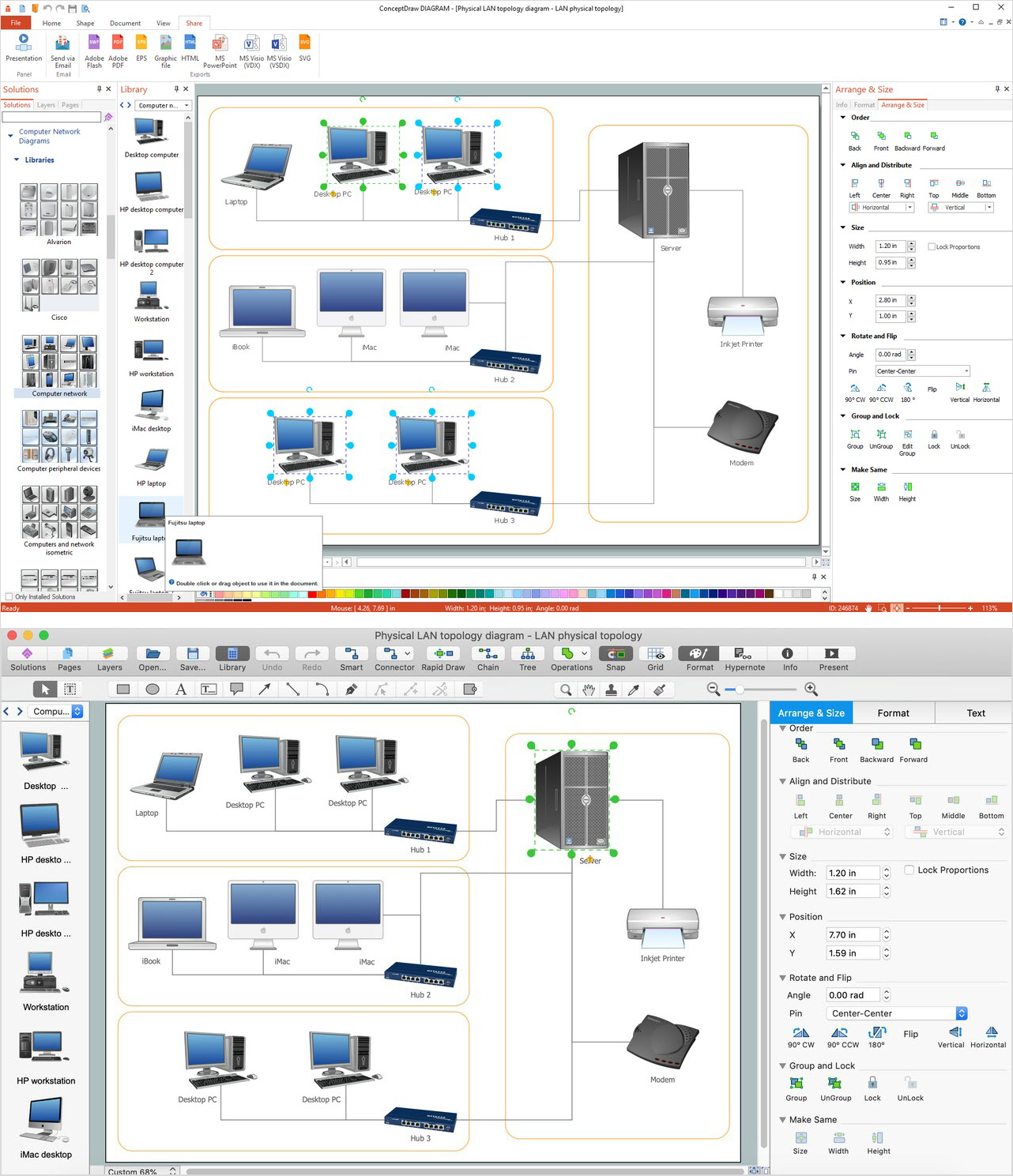

LAN Diagrams Physical Office Network Diagrams Diagram For LAN

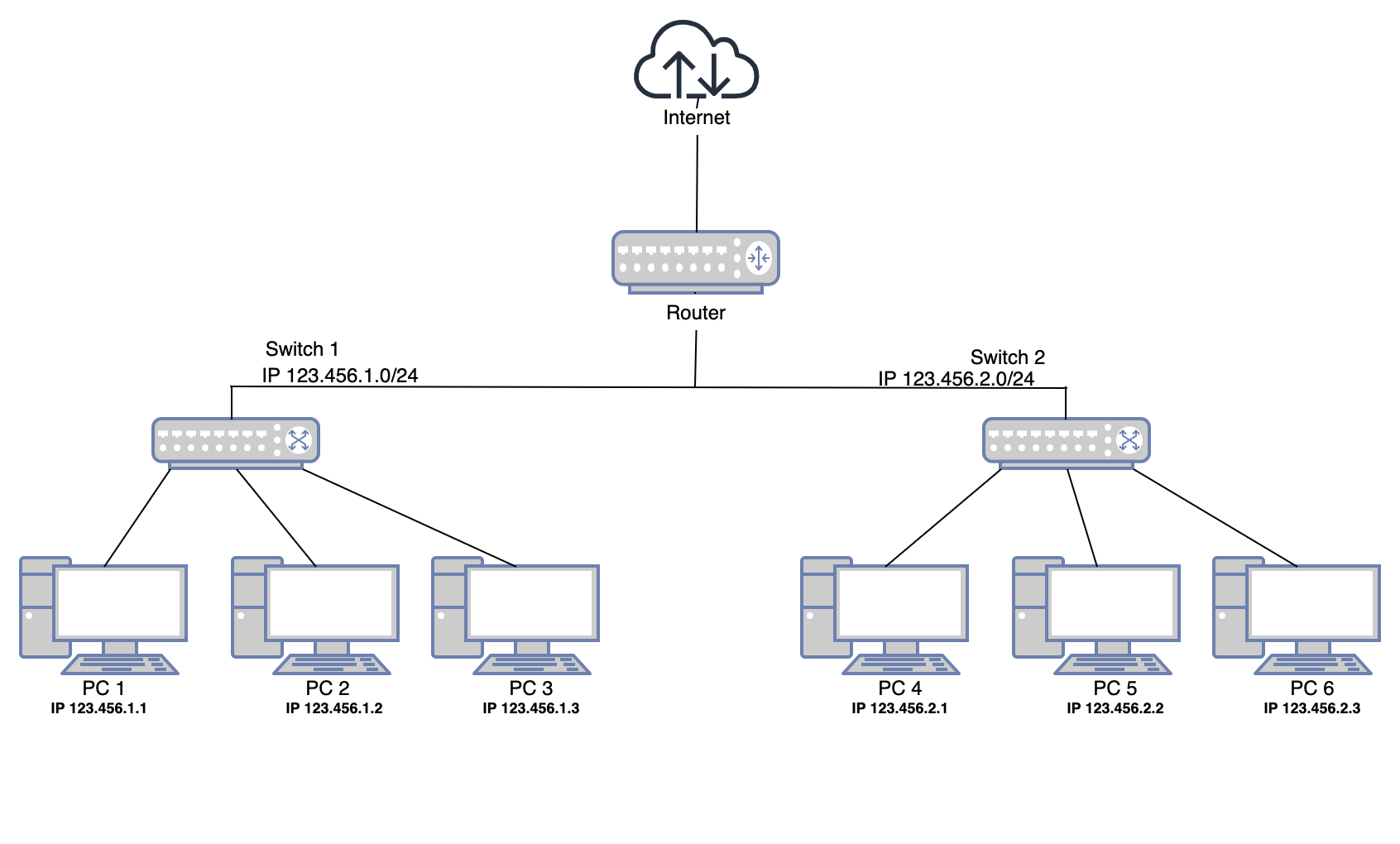

LAN Network Diagram Overview 158 Words Assessment Example

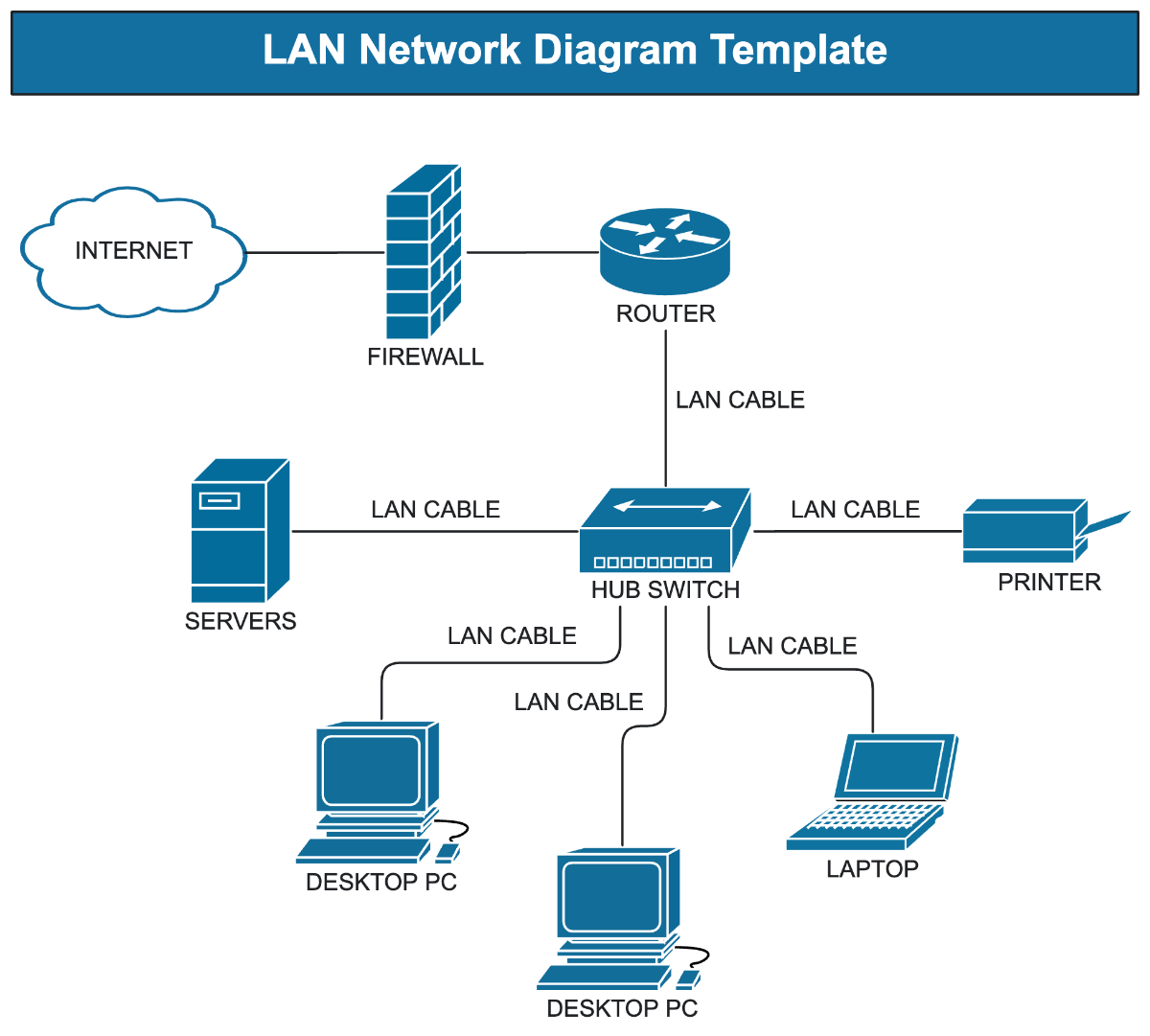

Free LAN Network Diagram Template To Edit Online

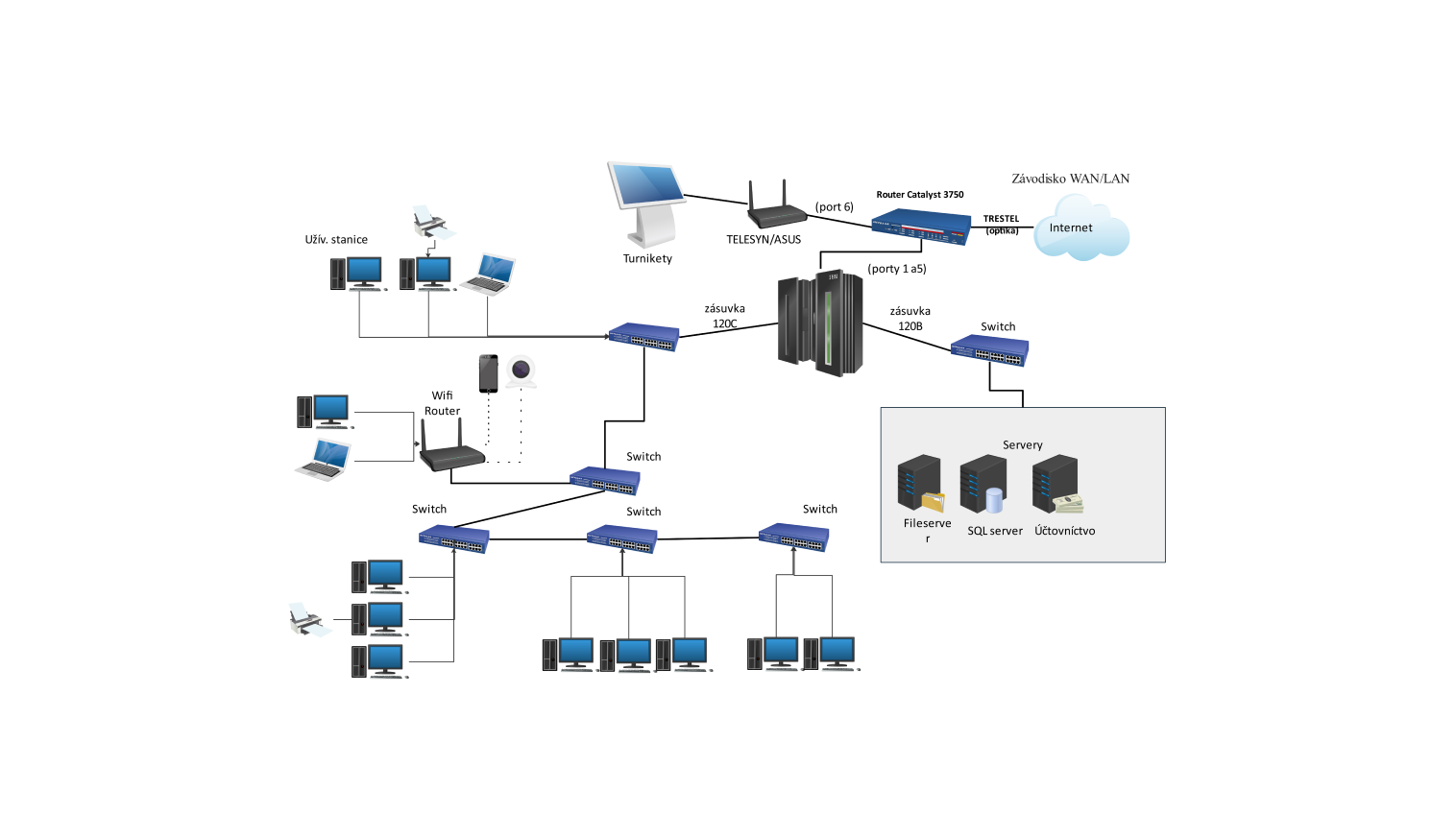

Local Area Network Diagram
